CARL GOLDBERG PRODUCTS MATRIX 40 EXTREME 3-D ARF Manual

Congratulations on your purchase of the Matrix 40 Extreme 3-D ARF. This is a very unique dual-purpose aircraft, capable of flying any FAI pattern sequence with ease, while exhibiting remarkable 3-D capabilities.

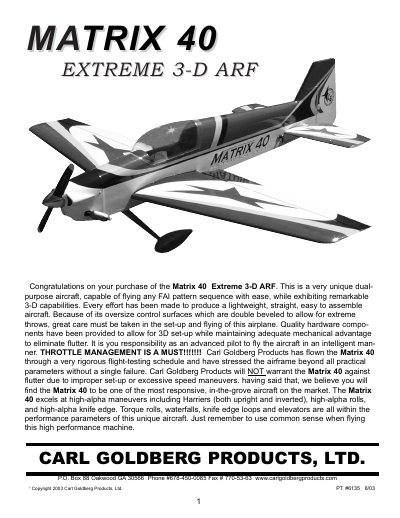

CARL GOLDBERG PRODUCTS MATRIX 40 EXTREME 3-D ARF Manual - cover page
Brand
CARL
Document type
User Manual
Language
English
Pages
18
File format
PDF
File size
983 KB
Published
08 August, 2012
Updated
30 September, 2023
MD5 checksum
8A73709259E808EBA6BF8E10A88A578B

About this manual

This manual provides assembly instructions and operating guidelines for the Matrix 40 Extreme, a dual-purpose 3D aerobatic radio-controlled airplane. The aircraft is designed for experienced pilots to perform high-alpha maneuvers such as Harriers, knife edges, and waterfalls. It features an oversize control surface design with double-beveled surfaces to allow for extreme throws while maintaining mechanical advantage to prevent flutter.

What's inside

  • Important Information
  • Parts List
  • Building Supplies
  • Stab Installation
  • Wing Assembly
  • Control Horn Mounting
  • Elevator Hinge Gluing
  • Tail Wheel Bracket
  • Rudder and Elevator Bellcrank
  • Flight Maneuvers

Specifications

Product TypeDual-purpose aircraft capable of flying any FAI pattern sequence with ease, while exhibiting remarkable 3-D capabilities.
Control Surface DesignOversize control surfaces which are double beveled to allow for extreme throws

Frequently asked questions

What is the warranty coverage regarding covering issues?

Covering coming loose is not covered under warranty due to temperature changes causing wrinkles.

Can I return the kit after assembly has begun?

No, if you find a problem before beginning to assemble the plane you must contact the manufacturer and do not return it.
