Carl Goldberg Products Freedom .20 Model Aircraft Assembly Instructions

This file is the manual for the FreeDOM model

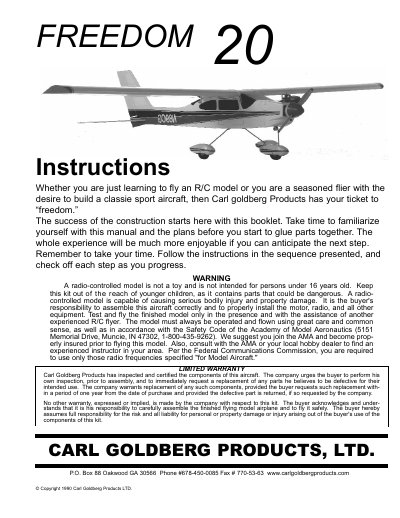

Carl Goldberg Products Freedom .20 Model Aircraft Assembly Instructions - cover page
Brand
CARL
Document type
User Manual
Language
English
Pages
60
File format
PDF
File size
4.1 MB
Published
08 August, 2012
Updated
01 October, 2023
MD5 checksum
A70CA2B3631EFF5DF0790E1DEEB582A7

About this manual

This manual provides step-by-step instructions for building the Freedom .20 radio-controlled model airplane. It includes a glossary of modeling terms, detailed assembly procedures for components like the fuselage, wings, and stabilizers, and guidance on using the included plans.

The document emphasizes safety warnings regarding the operation of RC models by persons under 16 years old and advises users to assemble the aircraft correctly before flying. It also outlines a limited warranty policy for defective parts.

What's inside

  • Glossary
  • Introduction
  • Parts Identification
  • Construction of Horizontal Stabilizer
  • Construction of Vertical Stabilizer
  • Construction of Fuselage
  • Building the Motor Mount
  • Construction of Wing
  • Attaching Landing Gear
  • Safety and Warranty

Frequently asked questions

What is the age requirement for flying this model?

A radio-controlled model is not intended for persons under 16 years old.

Is the Freedom .20 kit ready to fly immediately?

No, it requires assembly; users must follow instructions to glue parts together before flying.

What organization is recommended for insurance and instruction?

The Academy of Model Aeronautics (AMA) is suggested for joining, becoming insured, and finding instructors.

Download PDF (4.1 MB)
