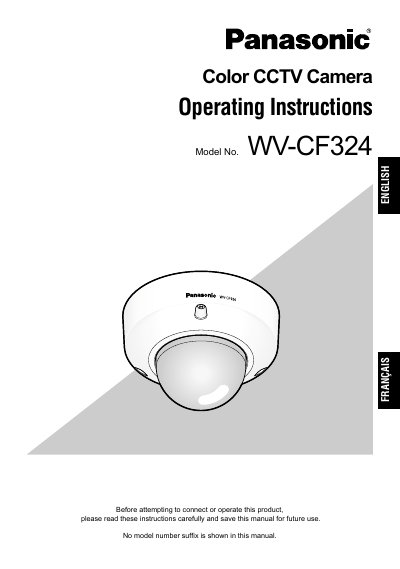

This manual explains how to connect and operate the WV-CF324 Color CCTV Camera.
This manual provides operating instructions for the Panasonic WV-CF324, a surveillance color CCTV camera equipped with a 1/4-inch type CCD solid-state image sensor. The device features an adaptive black stretch function, high resolution of 540 TV lines, and a minimum illuminance of 1.8 lx. It is designed to be mounted on a ceiling or wall for indoor use only.
| Image Sensor | 1/4-inch type CCD solid-state image sensor |
|---|---|
| Horizontal Pixels | 768 |
| Resolution | 540 TV lines (horizontal) |
| Minimum Illuminance | 1.8 lx (F1.3) |
| Operating Temperature | -10 °C - +50 °C |
| Operating Humidity | below 90 % |
No, this product is designed for indoor use only and should not be exposed to rain, water splash, or direct sunlight.
No, the product has no power switch and must be powered by an external 12 V DC/24 V AC power-supply device.
The ABF function provides precise focus adjustment automatically after manual coarse adjustments for the angle of view and focus are made.
