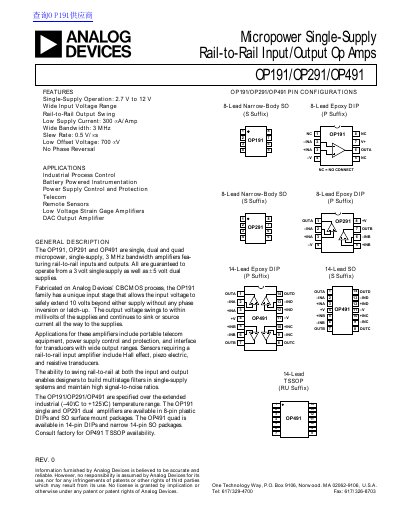

The OP191, OP291 and OP491 are single, dual and quad micropower, single-supply, 3 MHz bandwidth amplifiers featuring rail-to-rail inputs and outputs. All are guaranteed to operate from a 3 volt single supply as well as ±5 volt dual supplies.
The OP191, OP291, and OP491 are single, dual, and quad micropower, single-supply amplifiers featuring rail-to-rail inputs and outputs. Fabricated on Analog Devices' CBCMOS process, these devices are guaranteed to operate from a 3 volt single supply as well as +5 volt dual supplies. They are specified over the extended industrial temperature range of -40°C to +125°C.
| Supply Voltage Range | 2.7 V to 12 V |
|---|---|
| Bandwidth | 3 MHz |
| Slew Rate | 0.5 V/us |
| Offset Voltage (Typical) | 700 nV |
| Supply Current per Amp | 300 nA |
| Operating Temperature Range | -40°C to +125°C |
The amplifiers can operate from a single supply as low as 2.7 V.
The devices are specified for an extended industrial temperature range from -40°C to +125°C.
The typical supply current is 300 nA per amplifier at +25°C.
