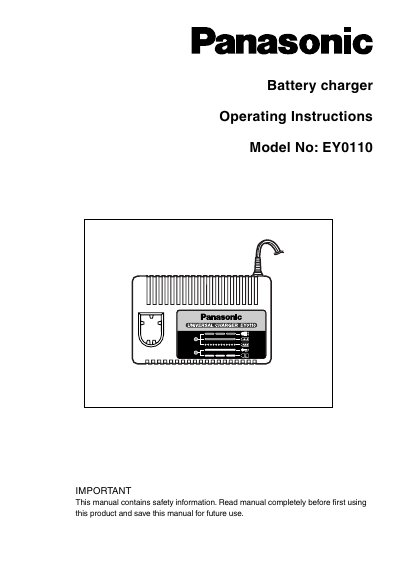

EY0110 battery charger operating instructions, introduces safety instructions, usage methods, storage and maintenance of the charger
This document provides operating instructions for the Panasonic EY0110 battery charger. It details important safety information regarding usage, compatible battery packs (such as EY9065, EY9230), and environmental conditions like temperature limits.
The guide explains how to charge the battery pack, including initial charging requirements and interpreting the status lamp indicators (Red Flashing, Red Lit, Green Flashing quickly). It also lists technical specifications such as weight and compatible voltage ratings.
| Weight | 0.78 kg (1.72 lbs.) |
|---|---|
| Compatible Battery Models | EY9065, EY9066, EY9168, EY9080, EY9086, EY9180, EY9182, EY9001, EY9006, EY9101, EY9106, EY9200, EY9201, EY9136, EY9230, EY9231, EY9251, EY9117, EY9210 |
| Charging Time (2.0Ah) | 20min. |
| Charging Time (3.0Ah) | 45min. |
For a charger rated at 0-2 Amperes, use an 18 AWG cord. For ratings greater than 2 Amperes, use a 16 AWG cord.
The charger is designed to work with specific battery packs, including models EY9065, EY9066, EY9168, EY9080, EY9086, EY9180, EY9182, EY9001, EY9006, EY9101, EY9106, EY9200, EY9201, EY9136, EY9230, EY9231, EY9251, EY9117, EY9210.
When charging the battery pack for the first time, or after prolonged storage, charge it for about 24 hours to bring the batteries up to full capacity.
