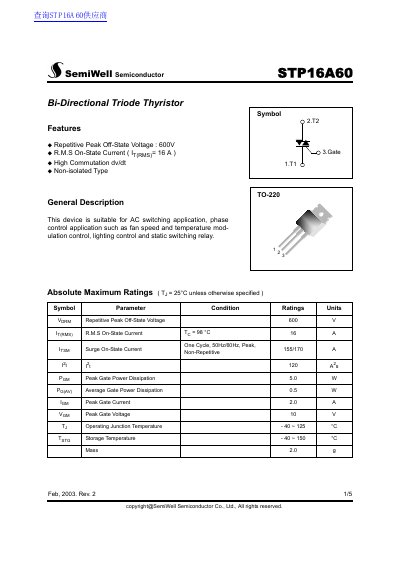

This document describes the absolute maximum ratings, electrical characteristics, and application areas of the STP16A60 bi-directional triode thyristor.
The document describes the STP16A60 as a non-isolated bi-directional triode thyristor suitable for AC switching applications such as fan speed control, temperature modulation, lighting control, and static switching relays. Key features include a repetitive peak off-state voltage of 600V and an RMS on-state current of 16A.
| Repetitive Peak Off-State Voltage | 600 V |
|---|---|
| R.M.S On-State Current | 16 A |
| Surge On-State Current | 155/170 A |
| Peak Gate Power Dissipation | 5.0 Ww |
| Operating Junction Temperature | -40 ~ 125 °C |
| Storage Temperature | -40 ~ 150 °C |
It is a Non-isolated Type device.
The device supports an RMS on-state current of 16 A when the temperature is 98 °C.
The operating junction temperature ranges from -40 to 125 °C, while the storage temperature is between -40 and 150 °C.
The peak gate power dissipation must not exceed 5.0 W.
