BT134-F is a bidirectional triode thyristor with a repetitive peak off-state voltage of 600V, a RMS on-state current of 4A, and high commutation dv/dt. It can be applied to low-power AC switching applications, phase-control applications such as fan speed and temperature modulation control, lighting control, and static switching relays.

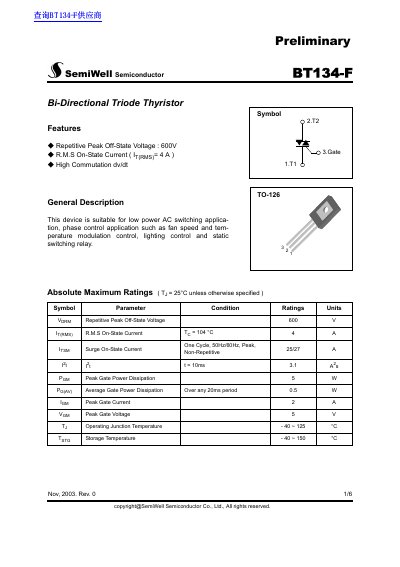

This document is a preliminary datasheet for the SemiWell BT134-F, a Bi-Directional Triode Thyristor designed for low power AC switching and phase control applications. Key features include a repetitive peak off-state voltage of 600V and an RMS on-state current of 4A.
| Repetitive Peak Off-State Voltage | 600 V |
|---|---|
| R.M.S On-State Current | 4 A |
| Peak Gate Power Dissipation | 5 W |
| Operating Junction Temperature | -40 ~ 125 °C |
This device is suitable for low power AC switching applications, phase control applications such as fan speed and temperature modulation control, lighting control and static switching relay.
The peak gate current rating is 2 A.
