STP12A60 is a bidirectional triode thyristor produced by SemiWell Semiconductor. Its maximum reverse blocking voltage is 600V and its rated forward current is 12A. It has high commutation dv/dt characteristics and is suitable for AC switching applications, phase control applications, etc.

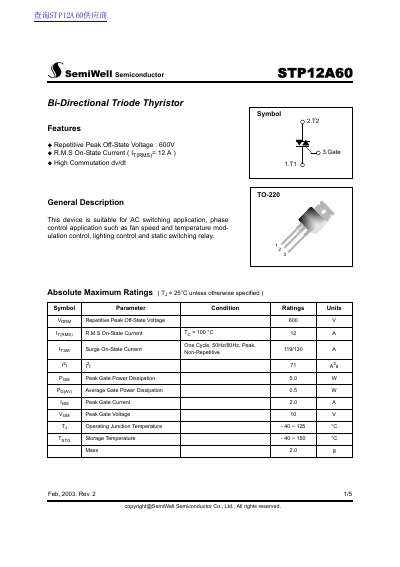

This document is a technical datasheet for the SemiWell STP12A60 Bi-Directional Triode Thyristor. It specifies that the device is suitable for AC switching applications such as fan speed control, temperature modulation, lighting control, and static switching relays.
The datasheet provides absolute maximum ratings including a repetitive peak off-state voltage of 600V and an RMS on-state current of 12A. It also lists electrical characteristics like gate trigger current and voltage, thermal impedance, and operating junction temperatures ranging from -40°C to 125°C.
| Repetitive Peak Off-State Voltage | 600 V |
|---|---|
| R.M.S On-State Current (Te = 100 °C) | 12 A |
| Surge On-State Current | 119/130 A |
| Peak Gate Power Dissipation | 5.0 W |
| Operating Junction Temperature | -40~125 °C |
| Storage Temperature | -40~150 °C |
| Package Type | TO-220 |
The device is suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.
The maximum operating junction temperature is 125 °C.
