Panasonic KX-FLM551 Multi-Function Laser Fax Control Panel Layout Description

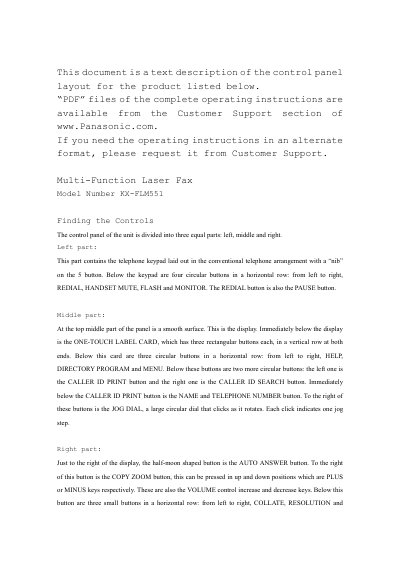

About this manual

The text provides a detailed description of the physical arrangement of buttons and controls on the device. It divides the control panel into three sections: left, middle, and right.

The left section contains the telephone keypad with a nib on the 5 button, followed by four circular buttons: REDIAL, HANDSET MUTE, FLASH, and MONITOR. The middle section features a display area above several function keys including ONE-TOUCH LABEL CARD, HELP, DIRECTORY PROGRAM, MENU, CALLER ID PRINT, CALLER ID SEARCH, NAME and TELEPHONE NUMBER, and the JOG DIAL.

What's inside

• Finding the Controls
• Left part controls
• Middle part controls
• Right part controls
• Telephone keypad
• Display area
• Copy functions
• Fax functions

Frequently asked questions

How many steps does one click of the JOG DIAL represent?

Each click of the JOG DIAL indicates one jog step.

What are the functions of the COPY ZOOM button?

The COPY ZOOM button acts as PLUS or MINUS keys and also controls volume increase and decrease.

What is the function of the FAX START button?

The FAX START button is also the SET button.
