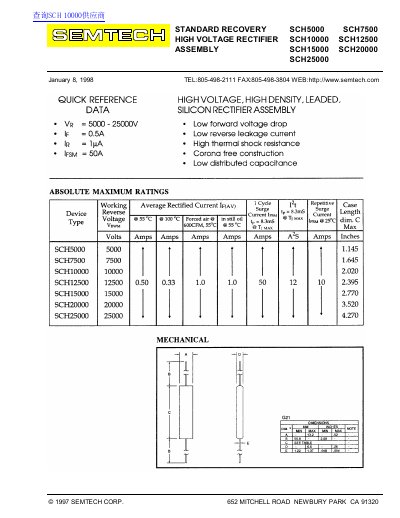

SEMTECH SCH5000/SCH7500/SCH10000/SCH12500/SCH15000/SCH20000/SCH25000 handbook

This is an instruction document about SCH10000 standard recovery high voltage rectifier assembly

Brand: Semtech
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 110 KB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: 20A0304B57E8FDADA0B0638CF0953277
PDF: SEMTECH SCH5000/SCH7500/SCH10000/SCH12500/SCH15000/SCH20000/SCH25000 handbook PDF

About this manual

This document is a technical datasheet for the Semtech Standard Recovery High Voltage Rectifier Assembly. It covers a series of leaded silicon rectifiers with working voltages ranging from 5000V to 25000V.

The datasheet provides absolute maximum ratings, electrical characteristics such as reverse leakage current and forward voltage drop, and operating temperature ranges from -55°C to +150°C. It also includes graphical data on forward current against ambient temperature and surge curves for capacitive loads.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Operating Temperature Range
Forward Voltage Drop
Maximum Forward Current Surge Curves
Capacitive Load Ratings
Mechanical Dimensions

Specifications

Working Voltage (V)	5000 - 25000 V
Operating Temperature Range	-55 °C to +150 °C
Reverse Leakage Current (SCH25000)	25.0 pA

Frequently asked questions

What is the operating temperature range for these rectifiers?

The operating temperature range is -55 °C to +150 °C.

What type of rectifier assembly is this?

This is a high voltage, high density, leaded silicon rectifier assembly.
