This document introduces the standard recovery high voltage rectifier assembly product series produced by SEMTECH CORP., including SCHJ15K, SCHJ22.5K, SCHJ30K, SCHJ37.5K, and SCHJ45K. These products are suitable for high voltage rectification applications and have fast recovery speed.

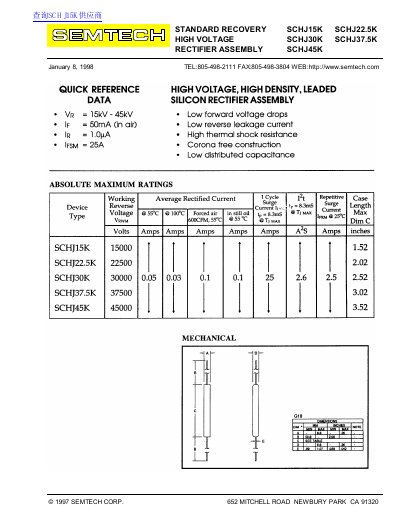

This document is a datasheet for the Semtech SCHJ series of high voltage, high density, leaded silicon rectifier assemblies. The series includes models SCHJ15K, SCHJ22.5K, SCHJ30K, SCHJ37.5K, and SCHJ45K, designed for applications requiring low forward voltage drops and low reverse leakage current.
| Working Average Rectified Current (1 Cycle) | 1.52A (SCHJ15K) to 3.52A (SCHJ45K) |
|---|---|
| Reverse Leakage Current | 1.0pA |
| Operating Temperature Range | -55 °C to +150 °C |
| Maximum Reverse Voltages | 15kV to 45kV |
| Forward Current (IF) | 50mA (in air) |
The operating temperature range is -55 °C to +150 °C.
The maximum reverse leakage current is 1.0pA.
Yes, they feature a corona free construction.
