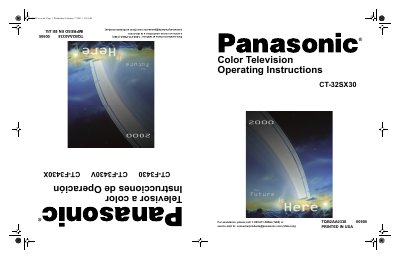

This document is the operating instructions for a color TV
This manual provides operating instructions for the Panasonic CT-32SX30 color television. It includes setup guidelines such as selecting a proper location, connecting AC power, and linking external devices like VCRs, cable boxes, or antennas to the TV's input jacks.
The document details how to use specific features including Picture-in-Picture (PIP), Split Screen, Roller Guide Menu navigation, and Closed Captioning. It also provides troubleshooting charts for common issues such as no sound, static image, or remote control malfunctions.
| Power Source | 120V AC, 60Hz |
|---|---|
| Channel Capability | 181 VHF-12; UHF-56; Cable-125 |
| Video Input Jacks | 1Vp-p, 75 Ohm, Phono Jack Type |
| Audio Output Jacks | 0-2.0V RMS 4.7K Ohm |
This television receiver is intended for use only with the PANASONIC TY-32HX40P stand.
Connect the VCR using S-Video or Video connections and select the corresponding video input on the remote control.
Check that the power cord is plugged in, adjust volume controls, and ensure the audio mode is set to Stereo or Mono.
