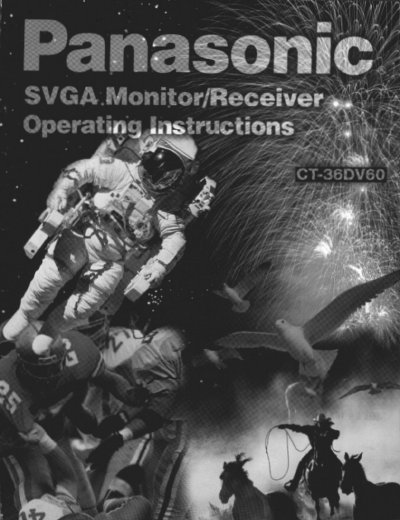

This document provides operating instructions for the Panasonic CT-36DV60 Color Video Monitor/Receiver. It covers safety guidelines, installation procedures including antenna connections and power supply cord usage, and detailed explanations of the remote control functions.
The manual details how to adjust picture settings such as color, tint, brightness, sharpness, and geometry. It also explains audio adjustments for stereo, surround sound, and bass/treble balance. Additionally, it provides specific instructions for using the monitor in TV Mode, PC Mode, and DTV Mode, including connection diagrams and troubleshooting charts.
| Viewable Image Size | 36.0 inches |
|---|---|
| Power Source | 120 V ac, 60 Hz |
| Channel Capability (VHF) | Channels 2-13 |
| Channel Capability (UHF) | Channels 14-69 |
| Max. Data Resolution | 800 x 600 @ 60 Hz |
| Horizontal Frequency Range | 15 KHz to 38 kHz |
The monitor requires a power source of 120 V ac at 60 Hz.
The maximum data resolution is 800 x 600 at 60 Hz.
Yes, the monitor is compatible with both PC and Mac computers.
