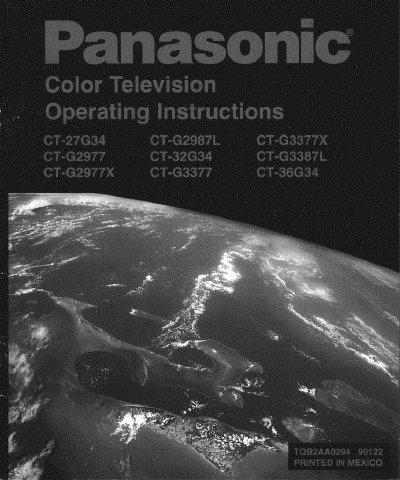

Panasonic CT-27G34/CT-G2977/CT-G2977X/CT-G2987L/CT-32G34/CT-G3377/CT-G3377X/CT-G3387L/CT-36G34 Manual

Brand: Panasonic
Category: Television
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 1.4 MB
Published: 06 August, 2012
Updated: 06 August, 2012
Model: CT-27G3
MD5 checksum: E51F86A5A91D60238BEE04C45374C0DD
PDF: Panasonic CT-27G34/CT-G2977/CT-G2977X/CT-G2987L/CT-32G34/CT-G3377/CT-G3377X/CT-G3387L/CT-36G34 Manual PDF

About this manual

This manual provides instructions for setting up and operating Panasonic CT-27G34, CT-32G34, and CT-36G34 televisions. It covers installation requirements, including location selection and cable connections, as well as optional equipment setup for VCRs and audio amplifiers. The guide details the operation of the Picture In Picture (PIP) feature for watching two broadcasts simultaneously.

What's inside

Congratulations
Care and Cleaning
Specifications
Installation
Television Location
Optional Cable Connections
Picture In Picture (PIP) Operation
Main Menu
Special Features
Troubleshooting Chart

Specifications

Power Supply	120V AC, 60Hz
Channel Capability	181 VHF-12; UHF-56; Cable-113
Video Input Jacks	2 Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks	2 Audio Input Jacks 500mV RMS 47K Ohm

Frequently asked questions

Where are the model and serial numbers located?

The model and serial number of this product are located on the back of the TV.

Can I use the front and rear Audio/Video connectors at the same time?

No, the front and rear Audio/Video connectors cannot be operated at the same time.

What happens if S-VIDEO and VIDEO input are used simultaneously?

If S-VIDEO and VIDEO input are used at the same time, two images will appear on the TV screen.
