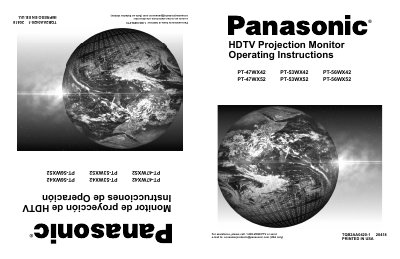

Panasonic PT-47WX42/PT-47WX52/PT-53WX42/PT-53WX52/PT-56WX42/PT-56WX52 Manual

This document is the operating instructions for HDTV projection monitors, including models PT-47WX42, PT-47WX52, PT-53WX42, PT-53WX52, PT-56WX42, and PT-56WX52. The document provides important operating and servicing instructions, as well as safety warnings and environmental notices.

Brand: Panasonic
Category: Player
Document type: User Manual
Language: English
Pages: 112
File format: PDF
File size: 2.5 MB
Published: 06 August, 2012
Updated: 29 September, 2023
MD5 checksum: 817CF291D38FDDF433E1CF059C917EC8
PDF: Panasonic PT-47WX42/PT-47WX52/PT-53WX42/PT-53WX52/PT-56WX42/PT-56WX52 Manual PDF

About this manual

This manual provides operating instructions for the Panasonic PT-47WX42, PT-47WX52, PT-53WX42, PT-53WX52, PT-56WX42, and PT-56WX52 HDTV Projection Monitors. It includes safety warnings, installation guidelines for location and cable connections, and detailed care and cleaning procedures for the projection screen and cabinet.

What's inside

Congratulations
Specifications
Installation
Television Location
Cable / Antenna Connection
Care and Cleaning
Feature Comparison Chart
Auto Set Up Menu
Remote Control Operation
Troubleshooting Chart

Specifications

Power Source	120V AC, 60Hz
Channel Capability	181 VHF-12; UHF-56; Cable-113
Video Input Jacks	1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks	500mV RMS 47K Ohm
Video Output Jack	1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks	0-2.0V RMS 4.7K Ohm

Frequently asked questions

What happens if I view fixed images for too long?

Continuous viewing of stationary images can cause permanent picture tube damage known as a 'shadow image'.

What is the power requirement for these monitors?

The unit requires a 120V AC, 60Hz power source.

How much viewing time should be spent on fixed images per week?

Fixed image program material should be limited to no more than 15% of total viewing time per week.
