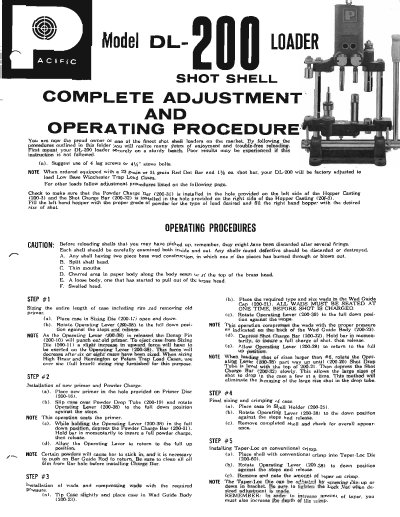

Pacific DL-200 Shotshell Reloader Operating Procedure

About this manual

This manual provides operating procedures for the Pacific DL-200 Shotshell Reloader. It details a five-step process for reloading shotgun shells, including sizing cases, installing primers and powder charges, seating wads, and final crimping.

The document also includes specific adjustment procedures for the Sizing Die, Powder Drop Tube, Shot Drop Tube, and Crimp Die to ensure proper loading performance. Special instructions cover changing charge bars and safety precautions regarding lubrication and case condition.

What's inside

• Operating Procedures
• Adjustment of Sizing Die
• Adjustment of Powder Drop Tube
• Adjustment of Shot Drop Tube
• Adjustment of Crimp Die
• Special Instructions

Frequently asked questions

What type of cases is the DL-200 factory adjusted for?

The unit is factory adjusted to load Low Base Winchester Trap Load Cases.

Can lubrication oil be used on the charge bars?

No, you should not use any type of lubrication oil on the charge bars as they must be kept dry and free of oil for proper operation.

How should damp cases be handled before reloading?

Damp cases will not resize properly; unprimed cases may be dried by placing them in an 180° oven for about 10 minutes.
