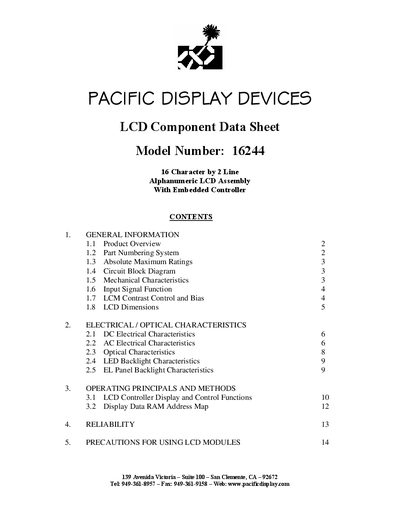

This document is the data sheet of 16244-type liquid crystal module, which introduces the overview, product features, technical indicators, working principles and precautions for use of the module
The 16244 LCD module is a 16‑character by 2‑line alphanumeric dot‑matrix display with an embedded S6A0069 controller. It supports both LED array and electroluminescent (EL) backlights and offers options for bias, viewing angle, and temperature range.
The document provides detailed electrical, optical, mechanical, and environmental specifications, as well as handling, storage, and safety guidelines for integration into electronic equipment.
| Module size (W×H×T) with LED backlight | 84.0 mm × 44.0 mm × 14.2 mm |
|---|---|
| Viewing area | 62.2 mm × 17.9 mm |
| Character matrix | 5 × 8 dots |
| Supply voltage for logic (Vpp) | 5.0 V (typical) |
| Supply current for logic (Ipp) | 1.38 mA (typical) |
| Operating temperature (standard) | 0 °C to 50 °C |
| Operating temperature (extended) | -20 °C to 70 °C |
| LCD module service life | ≥ 100,000 hours |
The module is rated for a minimum service life of 100,000 hours.
