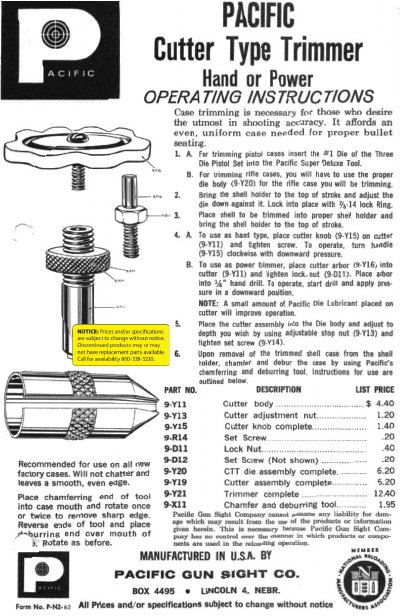

This document provides operating instructions for the Pacific Cutter-Type Trimmer, a tool designed for case trimming to ensure shooting accuracy. The manual details how to configure the trimmer for use with either pistol or rifle cases using specific dies from the Three Die Pistol Set or appropriate die bodies.
The guide explains two modes of operation: hand type and power trimmer. For hand operation, users attach a cutter knob to the cutter assembly. For power operation, a cutter arbor is placed into the cutter and secured in a hand drill. The manual also covers adjusting the cut depth using an adjustable stop nut and finishing steps involving chamfering and deburring.
Insert the #1 Die of the Three Die Pistol Set into the Pacific Super Deluxe Tool.
You must use the proper die body (9-20) for the specific rifle case you are trimming.
Place the cutter arbor into the cutter and tighten the lock nut, then place it into a 1/4" hand drill.
