This manual details the operation of Panasonic PV-C2023A/PV-C2033WA VCR models, including basic operation, initial setup, TV operation, timer operation, and advanced operation

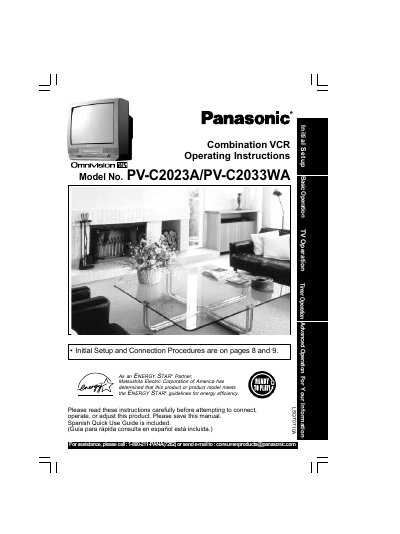

This manual provides operating instructions for the Panasonic PV-C2023A/PV-C2033WA Combination VCR. It includes initial setup procedures, connection guidelines, and detailed usage information for recording and playback functions.
The document outlines important safety safeguards regarding power sources, ventilation, and environmental conditions to prevent fire or shock hazards. It also details features such as the Head Clog Sensor, Digital Auto Tracking, and Daylight Saving Time adjustments.
| Picture Tube Size | 20 inch measured diagonal 90° deflection |
|---|---|
| Audio Track | 1 track |
| Power Source | 120 V AC, 60 Hz |
| Power Consumption (On) | Approx. 110 watts |
| Weight | 23 Kg (50.6 lbs.) |
Yes, press the 3 or 6 number key on the remote control or CH AW on the unit until the picture clears up.
The unit consumes approximately 110 watts of power when it is on.
The unit weighs 23 Kg, which is equivalent to 50.6 lbs.
