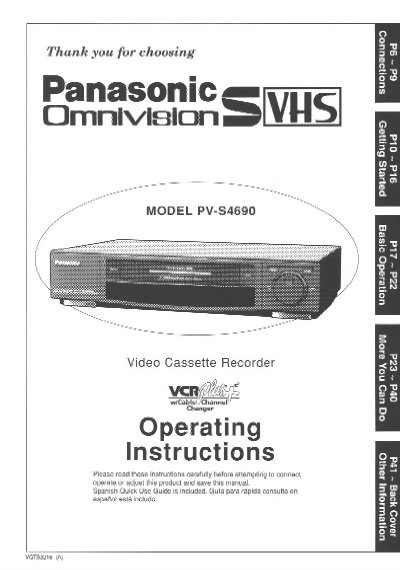

Panasonic PV-S4690 Video Cassette Recorder Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic PV-S4690 Video Cassette Recorder. It includes safety precautions, unpacking guidance, and connection details for antennas, cable TV, and audio/video equipment. The document explains how to perform one-time setup tasks such as channel memory and auto clock setting.

What's inside

• Important Safeguards and Precautions
• VCR and Cassette Information
• Connections
• One Time VCR Setup
• Basic Operation
• Timer Recording
• Super (S) VHS System
• Copying Your Tapes
• VCR Plus+ Set Up
• Index of Controls

Specifications

Frequently asked questions

Can this VCR play tapes recorded in HQ mode?

No, tapes recorded in the HQ mode cannot be played back with conventional VHS VCRs.

What type of video tapes are compatible with this VCR?

This video recorder is compatible with existing VHS equipment and only uses tapes marked with the [VHS] or S-VHS mark.

What is the recommended type of cassette tape for use in this machine?

It is recommended that only cassette tapes that have been tested and inspected for use in 2, 4, 6, and 8 hour VCR machines be used.

What happens if an unauthorized change is made to this equipment?

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.
