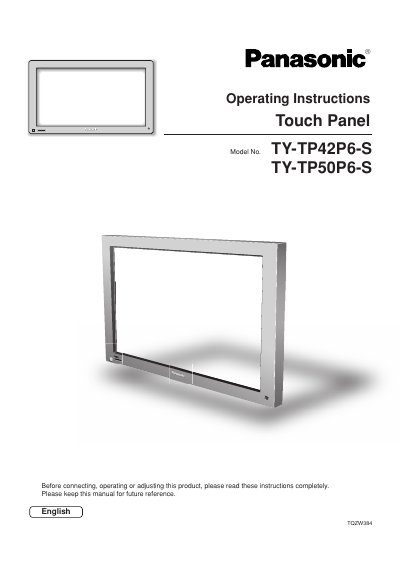

Panasonic TY-TP42P6-S/TY-TP50P6-S Touch Panel Operating Instructions

This is a touch panel user manual, which mainly introduces the use method, precautions, installation method and so on of the touch panel

Brand: Panasonic
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 1.5 MB
Published: 03 August, 2012
Updated: 30 September, 2023
MD5 checksum: 47BA6636DD61990680E4542748A6CD5F
PDF: Panasonic TY-TP42P6-S/TY-TP50P6-S Touch Panel Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic TY-TP42P6-S and TY-TP50P6-S touch panel units. It details safety warnings, setup procedures including attaching the unit to a plasma display and connecting it to a computer via USB, and software installation for various Windows versions (98/SE through XP). The document also covers maintenance routines such as cleaning the infrared transmissive area.

What's inside

Warnings and precautions
Cautions when in use
Setup location
Maintenance
Accessories
Touch panel unit description
Attachment of the touch panel to the plasma display
Connection between the computer and plasma display
Installation of the USB driver
Specifications

Specifications

Compatible Display	Plasma display

Frequently asked questions

What is the maximum length of the included USB cable?

The included USB cable has a maximum length of 2 meters (6.56 feet).

How often should the infrared transmissive area be cleaned?

You should wipe the infrared transmissive area once every day with a soft dry cloth.

What happens if the touch panel unit is placed face down?

Placing the touch panel unit face down may cause a malfunction due to the weight of the plasma display.
