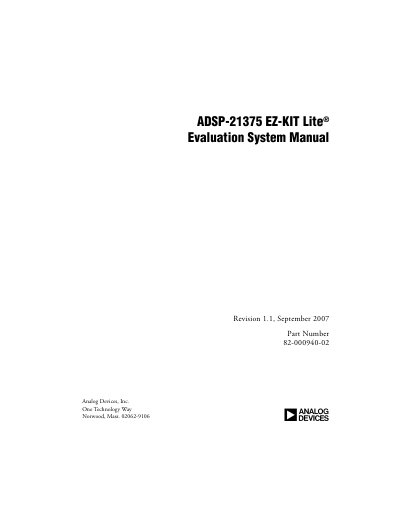

ADSP-21375 EZ-KIT Lite Evaluation System Manual, this manual introduces the features and usage of ADSP-21375 EZ-KIT Lite Evaluation System
The ADSP-21375 EZ-KIT Lite is an evaluation system designed for the ADSP-21375 SHARC processor, intended for use in a laboratory environment. It features a 266 MHz core clock speed, 2M x 16-bit SDRAM, and 1M x 8-bit Flash memory. The system is designed to be used with the VisualDSP++ development environment to test the processor's capabilities for premium audio applications.
| Core Clock Speed | 266 MHz |
|---|---|
| Processor Package | D208-pin MQFP |
| SDRAM Capacity | 2M x 16-bit x 4 banks |
| Flash Memory Capacity | 1M x 8-bit |
| Audio Codec | AD1835A |
| Audio Output | 4 channels of stereo output |
| Audio Input | 1 channel of stereo input |
| Headphone Output | 1 channel stereo output |
The board is designed to be used solely in a laboratory environment and is not intended for use as a consumer end product.
The EZ-KIT Lite offers an unrestricted evaluation license for the first 90 days.
The evaluation system is designed to be used in conjunction with the VisualDSP++ development environment.
