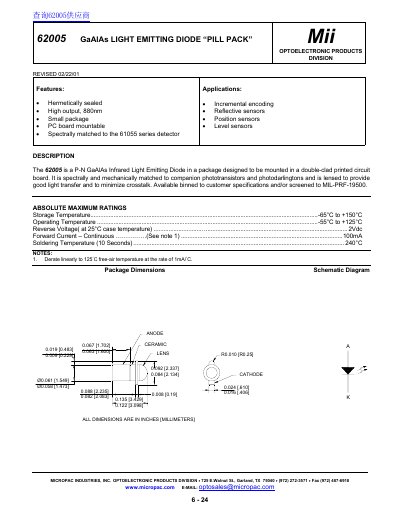

Micropac 62005 GaAlAs Light Emitting Diode Pill Pack Datasheet

This document describes the features and characteristics of the 62005 GaAlAs infrared light emitting diode product from MICROPAC INDUSTRIES, INC. OPTOELECTRONIC PRODUCTS DIVISION, including packaging, output power, size, and application areas.

Brand: Mii
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 77 KB
Published: 02 August, 2012
Updated: 29 September, 2023
MD5 checksum: 833F7E3B76139D8AF51B1087E53D0FC1
PDF: Micropac 62005 GaAlAs Light Emitting Diode Pill Pack Datasheet PDF

About this manual

The Micropac 62005 is a P-N GaAlAs infrared light emitting diode housed in a hermetically sealed pill package designed for double-clad printed circuit board mounting. It is spectrally matched to the 61055 series detector and features a lens to minimize crosstalk while providing good light transfer. The device is available in various output power bins and temperature ranges, with options for MIL-PRF-19500 screening.

What's inside

Features
Applications
Description
Absolute Maximum Ratings
Electrical Characteristics
Selection Guide
Package Dimensions

Specifications

Peak Wavelength	880 nm
Forward Current (Continuous)	100 mA
Reverse Voltage	2V
Beam Angle	18 degrees

Frequently asked questions

What is the peak wavelength of the 62005 LED?

The peak wavelength is 880 nm.

What is the maximum continuous forward current?

The maximum continuous forward current is 100 mA.
