Micropac Industries, Inc.'s 66156 is a photodiode output coaxial or bulkhead mount packages single channel optocoupler with high reliability, compact size, stable temperature performance and high electrical isolation. It is suitable for analog isolation, secure telecom, line receiver, medical and other applications

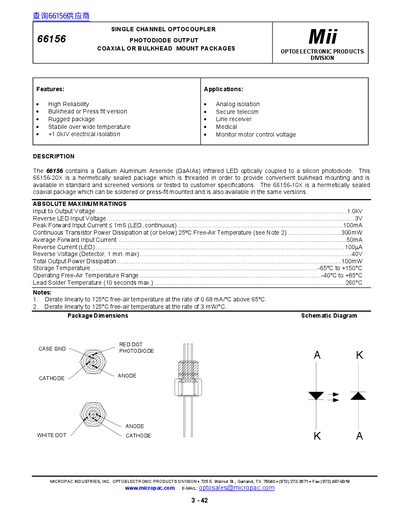

The Micropac Industries 66156 is a single channel optocoupler containing a Gallium Aluminum Arsenide (GaAlAs) infrared LED optically coupled to a silicon photodiode. It is designed for applications requiring analog isolation, such as secure telecom line receivers and medical equipment.
The device is available in hermetically sealed packages: the 66156-10X series features a coaxial package suitable for soldering or press-fit mounting, while the 66156-20X series offers bulkhead or press-fit versions. Operating temperatures range from -40°C to +85°C depending on the specific suffix selected.
| Input Diode Static Forward Voltage | 2.2 V |
|---|---|
| Reverse Breakdown Voltage (Detector) | 30 V |
| Output Voltage | 1.5 Vp-p |
The device provides +1.0kV electrical isolation.
The 66156-10X series is a hermetically sealed coaxial package which can be soldered or press-fit mounted.
