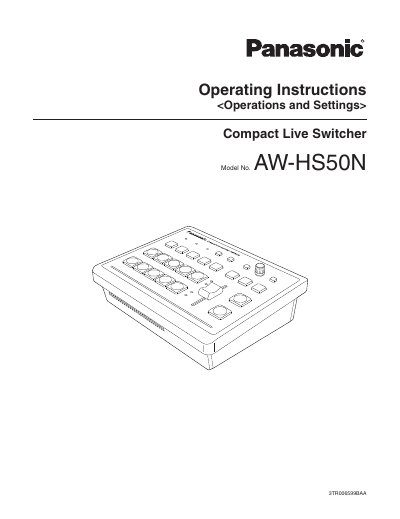

Panasonic AW-HS50E Operation Manual

This manual describes the basic operations and settings of the AW-HS50N Compact Live Switcher.

Brand: Panasonic
Category: Automation control Equipment
Document type: User Manual
Language: English
Pages: 68
File format: PDF
File size: 510 KB
Published: 02 August, 2012
Updated: 01 October, 2023
MD5 checksum: B6226041C75FE0A1F7FC369245C411CA
PDF: Panasonic AW-HS50E Operation Manual PDF

About this manual

This manual provides operating instructions for the Panasonic AW-HS50N Compact Live Switcher, a 1 ME digital video switcher supporting HD and SD formats. It covers basic operations including background transitions, wipe effects, keying, and picture-in-picture functions.

The document also details input/output signal settings, multi-view display configurations, and system settings such as video format and network configuration. Additionally, it explains how to connect the unit to a computer for data transfer and link it with the AW-RP50 remote camera controller.

What's inside

Basic operations
Background transitions
Wipe functions
Key operations
PinP settings
Input/output signal settings
Multi view display
System settings
External device control
Computer connections

Specifications

Number of inputs	four SDI inputs, one DVI-D input
Number of outputs	two SDI outputs and one DVI-D output
Supported formats	HD and SD formats
Channels provided	one keyer channel and one PinP channel

Frequently asked questions

What is the model number of the Compact Live Switcher?

The model number is AW-HS50N.

Can the unit be connected to a remote camera controller?

Yes, the unit can be linked up with the AW-RP50 remote camera controller.

What video formats does the unit support?

The unit supports a multiple number of HD and SD formats.
