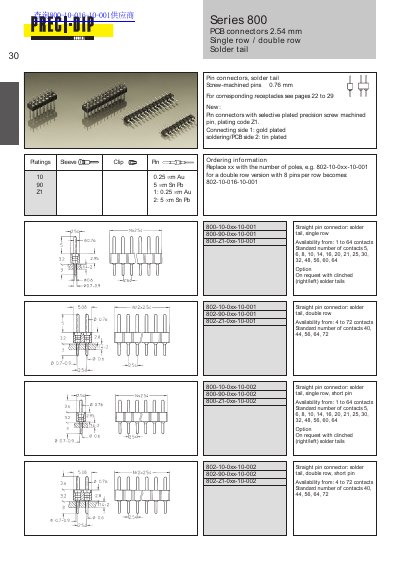

This document provides specifications and features of the 30 Series 800 PCB connectors. These connectors include single row and double row solder tail pin connectors that can be used with corresponding receptacles. The connecting side 1 is gold plated for soldering/PCB, while side 2 is tin plated. The connectors are available with selective plated precision screw machined pins. Various types and quantities of connectors are available, including straight pin connectors and short pin connectors. The connectors are available with 1 to 64 contacts. Clinched solder tails can be requested. The connectors have different plating options, including Au, Sn Pb, and Z1.
This document provides technical information for the Molex Series 800 PCB connectors, which feature a 2.54 mm pitch and are available in single and double row configurations. The connectors utilize screw-machined pins with a 0.76 mm pitch and are designed for use with corresponding receptacles.
The handbook details ordering information for various pin connector types, including straight pin connectors with solder tails and short pins. It specifies plating options, such as gold plating on the connecting side and tin plating on the soldering/PCB side, and lists standard contact counts ranging from 1 to 64 for single rows and 4 to 72 for double rows.
| Pitch | 2.54 mm |
|---|---|
| Pin pitch | 0.76 mm |
| Plating (Connecting side) | Gold plated |
| Plating (Soldering/PCB side) | Tin plated |
| Single row contact range | 1 to 64 contacts |
| Double row contact range | 4 to 72 contacts |
The connectors have a standard pin spacing of 2.54 mm.
The screw-machined pins have a diameter of 0.76 mm.
The connecting side of the pins is gold plated.
