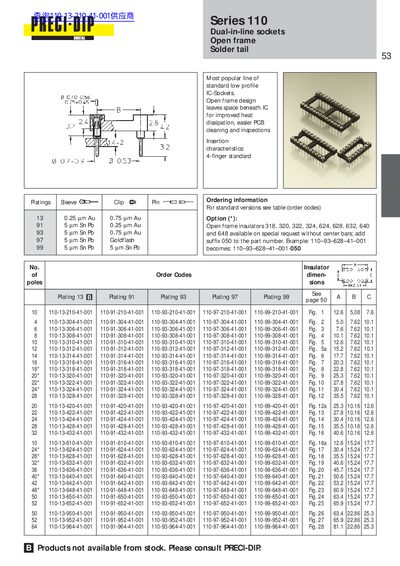

110 Series Dual-in-line sockets Open frame Solder tail Most popular line of standard low profile IC-Sockets. Open frame design leaves space beneath IC for improved heat dissipation, easier PCB cleaning and inspections
The Series 110 dual‑in‑line socket from Preci features an open‑frame design that leaves space beneath the IC for improved heat dissipation and easier PCB cleaning and inspection. It is a low‑profile, 4‑finger standard socket with a solder tail for reliable mounting.
Ordering information includes multiple plating options (0.25 µm Au, 0.75 µm Au, Sn‑Pb, Goldflash) and a range of dimensions (e.g., 5.0 mm × 7.62 mm × 10.1 mm). Order codes follow the pattern 110‑XX‑YY‑41‑001, where the code identifies plating and size variants.
| Plating options | 0.25 µm Au, 0.75 µm Au, Sn‑Pb, Goldflash |
|---|---|
| Insertion force | 3.2–3.7 N |
| Dimensions (mm) | 5.0 × 7.62 × 10.1 |
The Series 110 socket can be ordered with 0.25 µm gold, 0.75 µm gold, Sn‑Pb, or a Goldflash suffix plating.
Order codes use the pattern 110‑XX‑YY‑41‑001, where the middle numbers indicate plating type and size variant.
