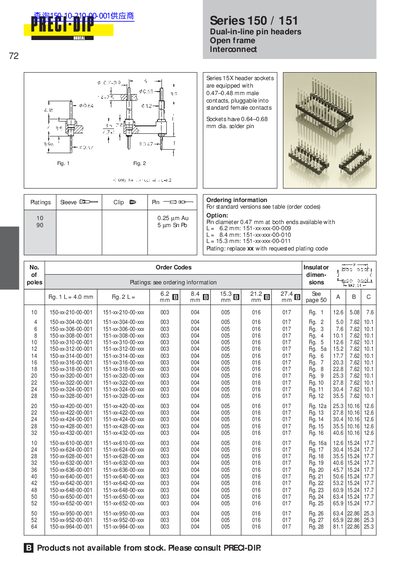

150 / 151 Dual-in-line pin headers Open frame Interconnect Series 15X header sockets are equipped with 0.47–0.48 mm male contacts, pluggable into standard female contacts
The Series 150/151 dual‑in‑line pin headers from PRECI are open‑frame interconnects designed for board‑to‑board connections. Each header uses 0.47‑0.48 mm male contacts that plug into standard female contacts, while the solder pins have a diameter of 0.64‑0.68 mm.
Ordering information includes multiple length options (L = 6.2 mm, 8.4 mm, 15.3 mm) and customizable plating codes. The document lists order codes for each length and pitch, allowing users to select the appropriate part number for their application.
| Male contact size | 0.47‑0.48 mm |
|---|---|
| Solder pin diameter | 0.64‑0.68 mm |
| Available lengths | L = 6.2 mm, 8.4 mm, 15.3 mm |
| Plating code | Customizable (replace xx with requested plating code) |
The male contacts are 0.47‑0.48 mm in size.
Lengths of 6.2 mm, 8.4 mm, and 15.3 mm are available.
Replace the "xx" in the order code with the desired plating code.
