KDT00030 is a phototransistor photo detector produced by Fairchild Semiconductor. It has the characteristics of small size, low power consumption and high sensitivity. It is suitable for backlighting applications of mobile devices such as mobile phones, notebook PCs and PDAs.

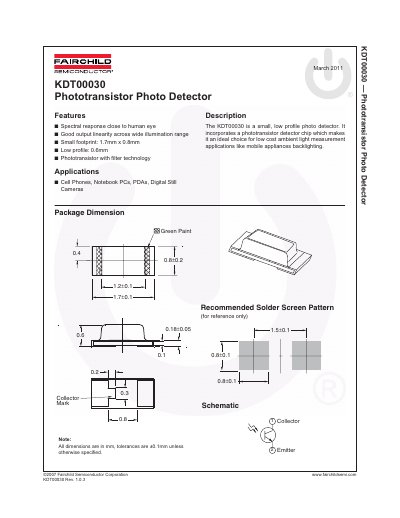

The KDT00030 is a small, low-profile phototransistor photo detector designed for ambient light measurement applications in mobile appliances such as cell phones, notebook PCs, PDAs, and digital still cameras. It features a spectral response close to the human eye and good output linearity across a wide illumination range. The device incorporates filter technology and is available in a compact package with a footprint of 1.7mm x 0.8mm and a low profile of 0.6mm.
| Footprint | 1.7mm x 0.8mm |
|---|---|
| Profile Height | 0.6mm |
| Collector-Emitter Voltage | 60 V |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +100 °C |
| Peak Sensitivity Wavelength | 630 nm |
| Dark Current | 0.1 µA |
It is ideal for low cost ambient light measurement applications like mobile appliances backlighting, specifically in cell phones, notebook PCs, PDAs, and digital still cameras.
The device has a spectral response that is close to the human eye.
The absolute maximum rating for the collector-emitter voltage is 60 V.
