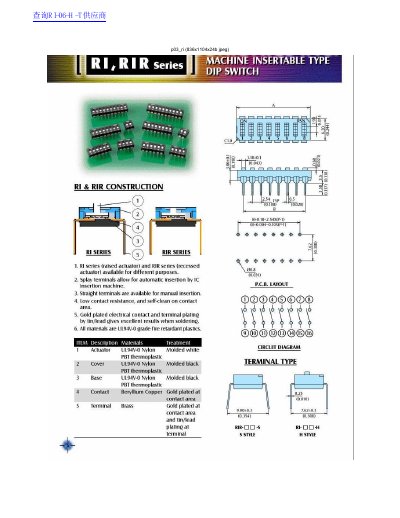

MACHINE RI/RIR Series Machine Insertable Type Dip Switch Handbook

Brand: MACHINE
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 2
File format: PDF
File size: 628 KB
Published: 01 August, 2012
Updated: 29 September, 2023
MD5 checksum: D8CB01410B122F397D9CEBB216BAB48C
PDF: MACHINE RI/RIR Series Machine Insertable Type Dip Switch Handbook PDF

About this manual

This document provides technical information for the MACHINE RI and RIR series of machine insertable type dip switches. These switches feature raised or recessed actuators and are designed for automatic insertion by IC insertion machines, with straight terminals available for manual insertion. The components utilize gold-plated electrical contacts and UL94V-0 grade fire retardant plastics.

What's inside

RI/RIR Series Features
PCB Layout
Circuit Diagram
Terminal Type
Model Specifications
How to Order
Packing
Electrical Ratings
Mechanical Ratings
Soldering and Cleaning

Specifications

Electrical life	2000 operation cycles per switch
Switching Rating	25mA, 24VDC
Operation Temp	-20° C to +70° C
Material	UL94V-0 Nylon Molded

Frequently asked questions

How are the switches packed?

All DIP switches are shipped in standard IC tubes with all poles in the "OFF" position.

What is the maximum recommended soldering temperature for wave soldering?

The manual recommends a maximum soldering temperature of 500 F (260 C) for no more than 5 seconds.

How many electrical operation cycles can each switch endure at its rated voltage and current?

Each switch has an electrical life of 2000 operation cycles when used at 24VDC and 25mA.
