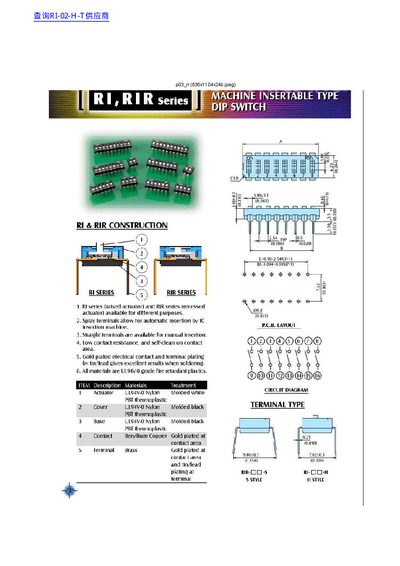

This document provides a technical overview of the RI and RIR series of machine insertable type dip switches. It highlights features such as splay terminals for automatic insertion by IC machines, straight terminals for manual use, low contact resistance, and gold-plated contacts. The materials are specified as UL94V-0 grade fire retardant plastics.
| Electrical life | 2000 operation cycles per switch |
|---|---|
| Switching Rating | 25mA, 24VDC. |
| Operation Temp | -20° C to +70° C |
| Stroke | 0.9mm |
The series offers a raised actuator for general purposes and a recessed actuator specifically for top tape sealed applications.
The recommended maximum soldering temperature is 500 F (260° C) for wave soldering.
