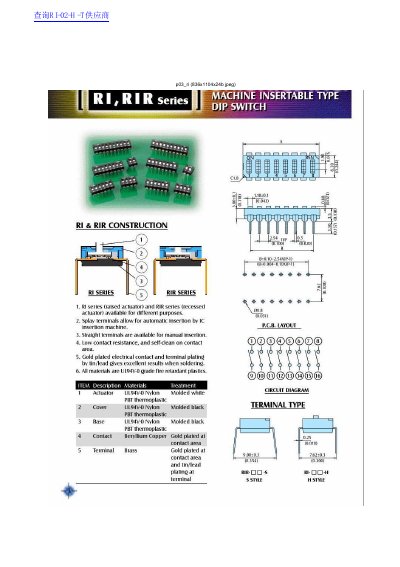

This document provides technical specifications and ordering information for the MACHINE RI and RIR series of machine insertable type dip switches. These components are available with either raised or recessed actuators and feature splay terminals designed for automatic insertion by IC machines, as well as straight terminals for manual insertion.
| Electrical Life | 2000 operation cycles per switch |
|---|---|
| Switching Rating | 25mA, 24VDC |
| Insulation Resistance | 100MQ min. (at 500VDC) |
| Dielectric Strength | 500VAC/1 minute |
| Operation Temp | -20° C to +70° C |
| Stroke | 0.9mm |
| Circuit | Single pole single throw |
The series offers raised actuators for the RI series and recessed actuators for the RIR series.
Splay terminals are available for automatic insertion by IC insertion machines, and straight terminals are available for manual insertion.
The recommended maximum soldering temperature is 500 F (260° C) for wave soldering.
