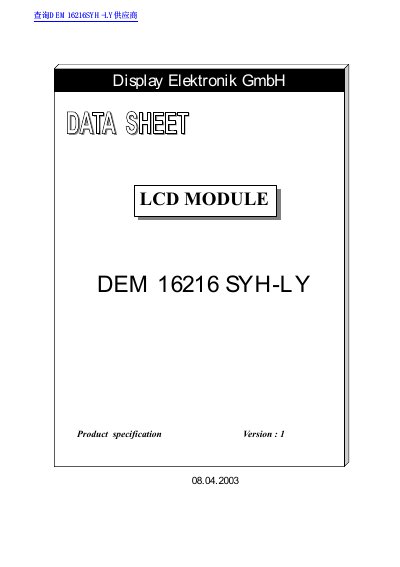

Display Elektronik GmbH DEM 16216 SYH-LY LCD Module Datasheet

This document is the DEM16216SYH-LY LCD module product specification, which mainly introduces the functional characteristics, mechanical parameters, external dimensions, pin assignments, PCB drawings and application examples of the module.

Brand: Display
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 22
File format: PDF
File size: 263 KB
Published: 01 August, 2012
Updated: 30 September, 2023
MD5 checksum: 27588347237EE00C6F08B89BEF31A2F8
PDF: Display Elektronik GmbH DEM 16216 SYH-LY LCD Module Datasheet PDF

About this manual

This document is a technical datasheet for the DEM 16216 SYH-LY, an STN (Super Twisted Nematic) type LCD module manufactured by Display Elektronik GmbH. The device features a positive mode viewing direction with yellow-green transflective characteristics and includes an integrated backlight.

What's inside

Functions & Features
Mechanical Specifications
Block Diagram
External Dimensions
Pin Assignment
PCB Drawing and Description
Backlight & Switch
Display Data RAM (DDRAM)
Instruction Description
Electrical Characteristics

Specifications

LCD Type	STN Yellow Green Transflective Positive Mode
Display Format	16 x 2 Characters (5 x 8 dots)
Power Supply Voltage	2.7 to 5.5V (typ. 5V)
Backlight Color	Yellow Green
Character Pitch	0.60 mm x 0.70 mm
Dot Size	5 x 8 dots

Frequently asked questions

What is the frame frequency of the DEM 16216 SYH-LY?

The frame frequency is 84.4 Hz.

How should the LED resistor be configured for this module?

The R7 and R8 resistors are used, where R7 is 10 Ohm and R8 is OPEN.
