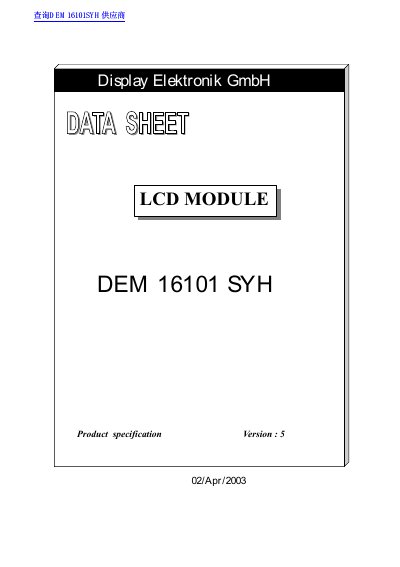

This document is about the product specification of Display Elektronik GmbH DEM 16101 SYH LCD module. The document includes information on the functions and features of the module, mechanical specifications, external dimensions, pin assignment, PCB drawing and description, display data RAM, maximum absolute ratings, and electrical characteristics.
This document is a product specification datasheet for the BiW DEM 16101 SYH LCD module. It describes the module as a 16x1 character STN reflective display with a yellow-green view, operating at 5.0V. The datasheet covers functions, features, and mechanical specifications including character pitch and size.
| Display Type | STN Reflective Positive Mode |
|---|---|
| Character Pitch | 23.75 mm |
| Operating Temperature | -20 ~ +70 °C |
| Supply Current | 0.35 mA (Typ) |
The character font is 5 x 8 dots.
The dot pitch is 0.65 mm (W) x 0.75 mm (H).
The maximum absolute rating for power supply voltage (Vop) is -0.3 ~ +7.0 V.
