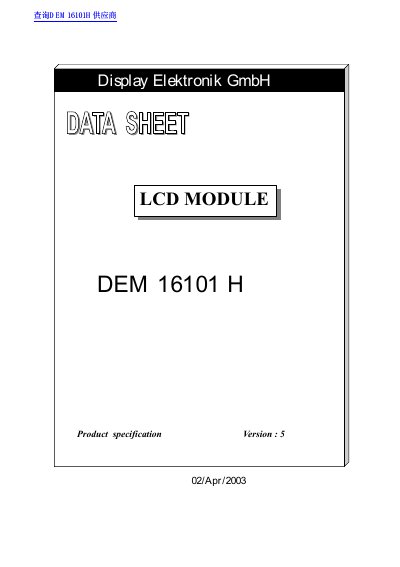

This is a DEM 16101 H LCD MODULE product specification sheet, which introduces the product's functions, features, external design, dimensions, pin definition, internal structure and other information.
This document is a product specification sheet for the Display Elektronik GmbH DEM 16101 H LCD module. It describes a TN reflective positive mode display with a 16x2 character format (5 x 8 dots). The module supports both 4-bit and 8-bit MPU interfaces and operates on a power supply voltage of 4.5V to 5.5V.
| LCD Type | TN Reflective Positive Mode |
|---|---|
| Power Supply Voltage | 4.5V ~ 5.5V |
| Internal Memory (CGROM) | 10,080 bits |
| Operating Temperature | -20 ~ +70 °C |
The module uses a 1/16 Duty Cycle and 1/5 Bias driving scheme.
Do not subject it to mechanical shock by dropping it from a high place.
