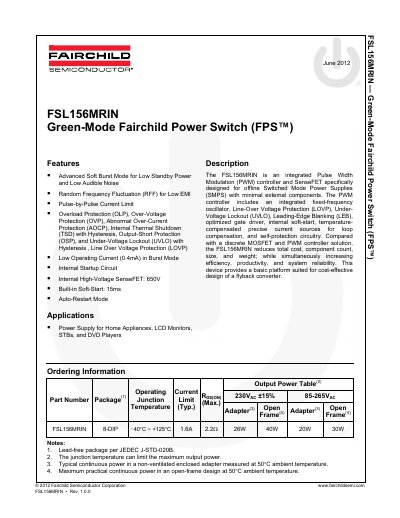

The FSL156MRIN is a Fairchild Green Mode Power Switch (FPS™) specifically designed for offline Switched Mode Power Supplies (SMPS). It features advanced Soft Burst Mode for low standby power and low audible noise, Random Frequency Fluctuation (RFF) for low EMI, Pulse-by-Pulse Current Limit Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD) with Hysteresis, Output-Short Protection (OSP), and Under-Voltage Lockout (UVLO) with Hysteresis. It also features low operating current (0.4mA) in Burst Mode and an internal startup circuit.
The FSL156MRIN is an integrated Pulse Width Modulation (PWM) controller and SenseFET designed for offline Switched Mode Power Supplies (SMPS). It features an advanced Soft Burst Mode for low standby power and low audible noise, along with Random Frequency Fluctuation (RFF) for reduced EMI. The device includes comprehensive protection features such as Line-Over Voltage Protection (LOVP), Over-Voltage Protection (OVP), and Internal Thermal Shutdown (TSD).
| Maximum Junction Temperature | 150 °C |
|---|
The maximum practical continuous power in an open-frame design at 50°C ambient temperature is 40W.
Yes, the device includes a built-in soft-start with a time of 15ms.
