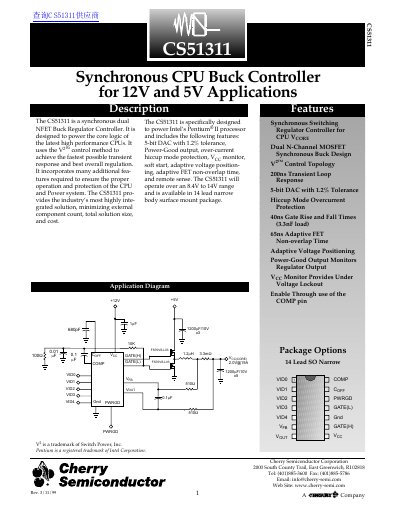

The CS51311 is a synchronous dual NFET Buck Regulator Controller. It is designed to power the core logic of the latest high performance CPUs. It uses the V2TM control method to achieve the fastest possible transient response and best overall regulation. It incorporates many additional features required to ensure the proper operation and protection of the CPU and Power system. The CS51311 provides the industry’s most highly integrated solution, minimizing external component count, total system cost and BOM, and improving reliability.
The CS51311 is a synchronous dual N-FET Buck Regulator Controller designed to power the core logic of high performance CPUs. It utilizes the V2 control method to achieve fast transient response and best overall regulation, incorporating features such as over-current hiccup mode protection, Vcc monitor, soft start, and adaptive voltage positioning. The device is specifically designed to power Intel's Pentium II processor and operates over an 8.4V to 14V range.
| Input Voltage Range | 8.4V to 14V |
|---|---|
| Package Type | 14 lead narrow body surface mount |
| Transient Response | 200ns |
| Gate Rise and Fall Times | 40ns |
| Adaptive FET Non-overlap Time | 65ns |
| DAC Tolerance | 1.2% |
The CS51311 is specifically designed to power Intel's Pentium II processor.
The device operates over an 8.4V to 14V range.
