AMI6G1046 is an electronic component, and the supplier information is not provided. The features and characteristics of this component are not specifically described in the document.

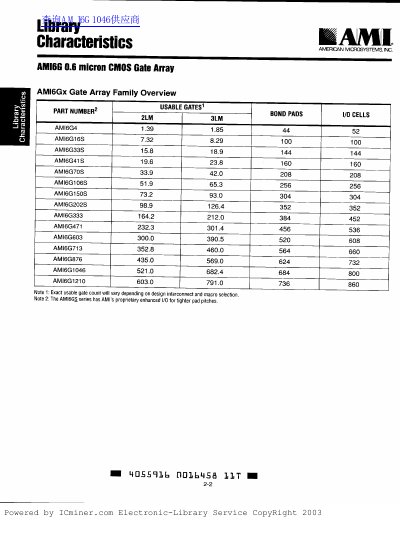

This document provides a comprehensive overview of the AMI AMI6Gx 0.6 micron CMOS Gate Array family. It details the architectural features, including selectable metal interconnect levels, cell site configurations with four transistors per site, and separate power busses for I/O and core logic.
The datasheet outlines product applications suitable for telecom, industrial, military, computer, and office automation ASIC requirements. It also describes the design flow methodology supported by AMI's Enhanced Design Utilities (EDU) and third-party software platforms like Cadence and Synopsys.
| Technology Node | 0.6 micron CMOS |
|---|---|
| Metal Interconnect Levels | Selectable 2 or 3 metal |
| Transistors per Site | 4 transistors (2 P-channel, 2 N-channel) |
| Power Busses for I/O | Four separate power busses |
| I/O Voltage Options | 5V Vpp, 3V Yop, Vss, or signal I/O |
| I/O Drive Capability | 1mA to 24mA |
Yes, using NETRANS™, AMI can convert netlists from most gate array, FPGA, and PAL devices to an AMI6X design.
The design is supported by many popular 3rd party software platforms including Cadence, Mentor Graphics, Synopsys, Viewlogic, Intergraph, Compass, and Verilog simulation.
