AMI ELEKTRONIK 41100065-XXXXX technology data

AMI-ELEKTRONIK GMBH & CO PRODUKTIONS KG AMI B100/180 is a rotary encoder with up to 10,000 line numbers.

Brand: AMI
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 131 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: E7AAE41EB4B71D968056A07B76069310
PDF: AMI ELEKTRONIK 41100065-XXXXX technology data PDF

About this manual

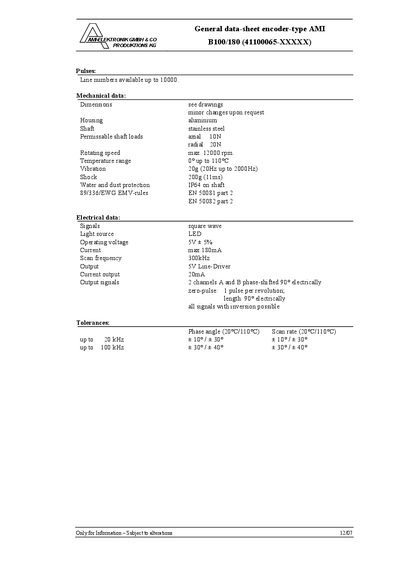

This document is a general data sheet for the AMI B100/180 encoder. It provides key technical parameters including pulse line numbers, mechanical dimensions and load limits, and environmental ratings such as temperature and vibration.

What's inside

General data
Mechanical data
Electrical data
Tolerances
Mechanical dimensions
Pin colour signals

Specifications

Line numbers available	up to 10000
Housing material	aluminium
Shaft material	stainless steel
Permissible axial shaft load	10N
Permissible radial shaft load	20N
Maximum rotating speed	12000 rpm
Temperature range	0° up to 110°C
Operating voltage	5V+5%
Maximum current	180mA
Scan frequency	300kHz
Output signal type	5V Line-Driver
Output current	20mA
Phase shift between channels	90° electrically

Frequently asked questions

What is the maximum operating temperature for the AMI B100/180 encoder?

The device operates within a temperature range from 0° up to 110°C.

What is the maximum rotating speed of the encoder?

The maximum rotating speed is 12000 rpm.

What is the maximum operating current for the encoder?

The maximum current is 180mA.
