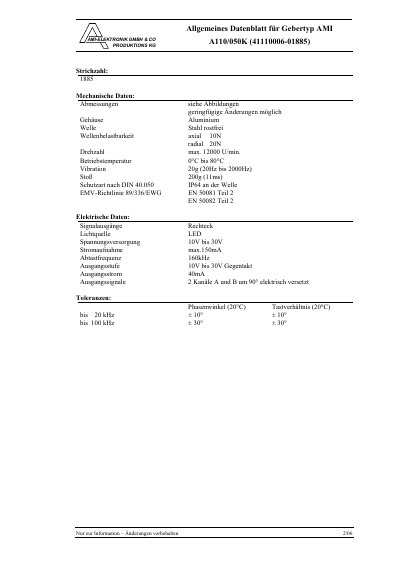

AMI ELEKTRONIK 41110006-01885 technology data

This is a general data sheet for AMI A110/050K (41110006-01885) sensor.

Brand: AMI
Category: Other Electronics
Document type: Datasheet
Language: German
Pages: 2
File format: PDF
File size: 132 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 47CF4171C8E03E160C7CE918CF127860
PDF: AMI ELEKTRONIK 41110006-01885 technology data PDF

About this manual

This document is a general technical data sheet for the AMI A110/050K encoder (production number 41110006-01885). It provides mechanical data, including housing material and shaft load capacity, as well as electrical specifications for the square wave output signals. This manual is written in German.

What's inside

Mechanische Daten
Elektrische Daten
Toleranzen
Mechanische Abmessungen
Stecker Pinbelegung

Specifications

Housing Material	Aluminium
Shaft Material	Stainless Steel
Max. Axial Shaft Load	10N
Max. Radial Shaft Load	20N
Max. Speed	12000 U/min
Operating Temperature	0°C bis 80°C
Supply Voltage	10V bis 30V
Max. Current Consumption	150mA
Sampling Frequency	160kHz
Output Current	40mA
Phase Angle Tolerance (20kHz)	+ 10°
