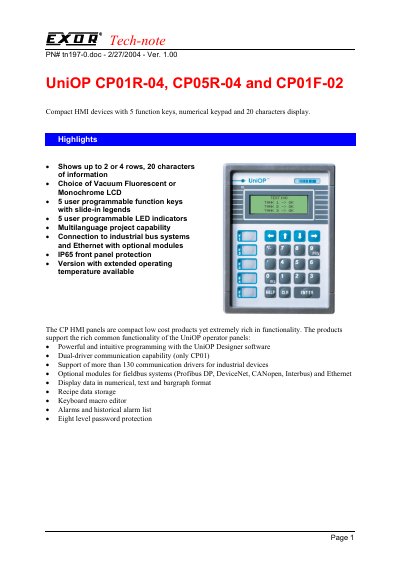

UniOP CP01R-04, CP05R-04 and CP01F-02 are three compact, low-cost HMI panels with rich functionality. They support multiple languages, connection to industrial bus systems and Ethernet, IP65 front panel protection and an extended operating temperature range.
This document provides technical specifications for the UniOP CP series of compact Human-Machine Interface (HMI) devices. The models include the CP01R-04, CP05R-04, and CP01F-02, which offer rich functionality in a low-cost, compact form factor. Key features include support for up to 2 or 4 rows of 20 characters, user-programmable function keys with slide-in legends, and LED indicators.
| Display Rows/Columns | 2/20 or 4/20 |
|---|---|
| Display Type | VFD or LCD |
| Communication Ports | RS-232, RS-422, RS-485, CL 20 mA |
| Programming Speed | 9600 + 38400 bps |
| Power Supply Voltage | 18 + 30 VDC |
| Max Power Consumption | 0.300 A at 24 VDC |
| Protection Class | IP65 |
The products are available with Vacuum Fluorescent (VFD) or Monochrome LCD displays.
Yes, the CP01 model supports dual-driver communication capability.
