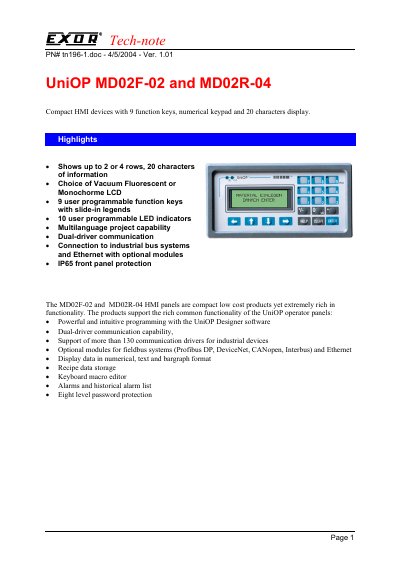

UniOP MD02F-02 and MD02R-04 are compact HMI devices with 9 function keys, numerical keypad and 20 characters display.
This document provides technical specifications for the UniOP MD02F-02 and MD02R-04 Compact HM I devices. These are compact, low-cost Human Machine Interface (HMI) panels equipped with 9 user programmable function keys, a numerical keypad, and a 20-character display. The devices support dual-driver communication, allowing connections to industrial bus systems and Ethernet via optional modules, and feature an IP65 front panel protection rating.
| Display Rows/columns | 2/20 or 4/20 |
|---|---|
| Character height | 5 mm |
| User memory | 512 KB |
| Power supply voltage | 18 ÷ 30 VDC |
| Max power consumption | 0.25 A at 24 VDC |
| Protection class | IP65 |
| Weight | ~ 0.9 Kg |
The MD02F-02 features a Vacuum Fluorescent (VFD) display, while the MD02R-04 features a Monochrome LCD display.
Yes, they can connect to Ethernet using optional modules.
The devices use a CR2430 (3V 270mA Lithium) non-rechargeable battery.
