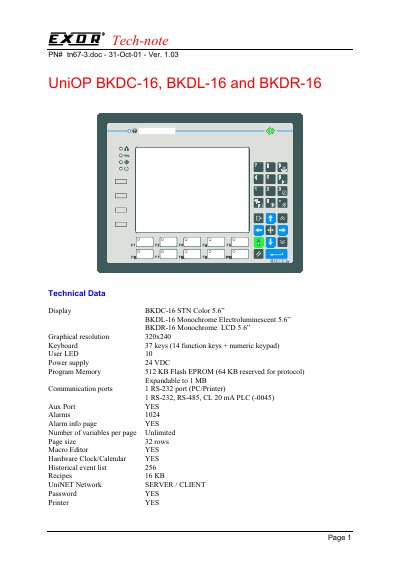

This document describes the features and characteristics of the UniOP BKDC-16, BKDL-16, and BKDR-16 technical data displays. These displays have different display types and resolutions, and feature keyboard, LED indicators, communication ports, etc.
This document provides technical specifications for the Exor BKDC-16, BKDL-16, and BKDR-16 controller series. The models differ primarily by their display technology: the BKDC-16 features a 5.6" STN Color display, while the BKDL-16 and BKDR-16 utilize 5.6" Monochrome Electroluminescent and Monochrome LCD displays, respectively. All units share a graphical resolution of 320x240 and a 37-key keyboard layout.
| Graphical resolution | 320x240 |
|---|---|
| Keyboard keys | 37 keys |
| Program Memory | 512 KB Flash EPROM |
| RS-232 ports | 1 |
| RS-485/PLC support | Yes |
| UniNET Network | Server / Client |
The BKDC-16 has a 5.6" STN Color display, while the BKDL-16 and BKDR-16 have 5.6" Monochrome Electroluminescent and Monochrome LCD displays.
Yes, the controller supports RS-485 communication along with RS-232 and CL 20 mA PLC interfaces.
