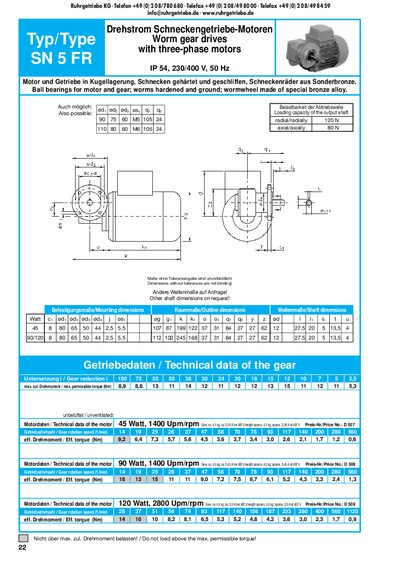

This document describes a product called SN 5 FR, which is a Drehstrom Schneckengetriebe-Motoren with three-phase motors. The product is a worm gear drive with an IP 54 rating, voltage of 230/400 V, and frequency of 50 Hz. The document provides technical data of the product, including maximum permissible torque, motor power, and weight.
This document provides technical data for the Ruhrgetriebe SN 5 FR, a three-phase worm gear drive equipped with a three-phase motor. The unit features ball bearings for both the motor and gear, with hardened and ground worms and wormwheels made of special bronze alloy. It is rated for IP 54 protection and operates at 230/400 V, 50 Hz. This manual is written in German.
| Voltage | 230/400 V, 50 Hz |
|---|---|
| Protection Class | IP 54 |
| Motor Power (45W) | 45 Watt |
| Motor Power (90W) | 90 Watt |
| Motor Power (120W) | 120 Watt |
| Gear Reduction (i) | 100, 75, 55, 50, 38, 30, 24, 20, 18, 15, 12, 10, 7 |
The drive is designed for 230/400 V at 50 Hz.
The wormwheel is made of special bronze alloy.
The maximum permissible torque is 8.9 Nm.
