The document describes a product that uses Drehstrom Schneckengetriebe-Motoren. The product includes a gear drive unit with a three-phase motor, with specifications of IP 54, 230/400 V, 50 Hz. The product features ball bearings and hardened ground worms, with wormwheels made of a special bronze alloy. The product offers different power and rotation speed options.

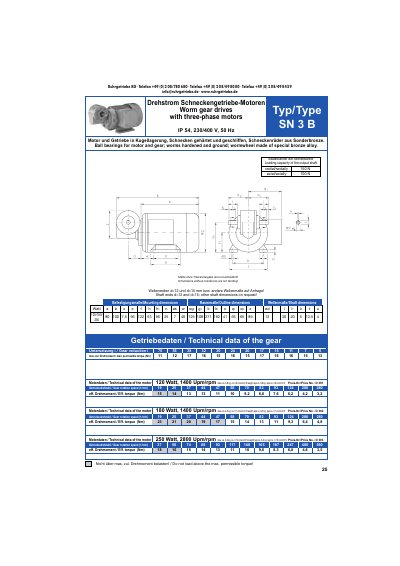

This document provides technical data for the Ruhrgetriebe SN 3 B, a worm gear drive equipped with a three-phase motor. The unit features ball bearings for both the motor and gear, hardened and ground worms, and a wormwheel made of special bronze alloy. It is rated for IP 54 protection and operates at 230/400 V, 50 Hz. This manual is written in German.
| Voltage/Frequency | 230/400 V, 50 Hz |
|---|---|
| Protection Class | IP 54 |
| Output Shaft Radial Load | 150 N |
| Output Shaft Axial Load | 100 N |
| Shaft End Diameter Options | d=12 and d=15 mm |
The worms are hardened and ground, while the wormwheel is made of special bronze alloy.
The unit uses ball bearings for both the motor and the gear.
