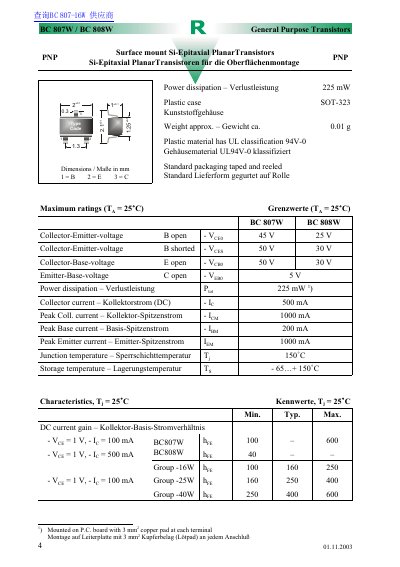

This document describes the features and characteristics of the BC 807W / BC 808W general purpose PNP surface mount transistors, including installation method, electrical parameters, dimensions, packaging form, etc.
This document provides technical specifications for the BC 807W and BC 808W PNP surface mount transistors. It covers maximum ratings such as collector-emitter voltage and power dissipation, along with electrical characteristics including DC current gain and saturation voltages. This manual is written in German.
| Power dissipation | 225 mW |
|---|---|
| Collector-Emitter voltage (B open) | 45 V |
| Collector current (DC) | 500 mA |
| Junction temperature | 150 °C |
The recommended complementary NPN transistors are BC 817W and BC 818W.
The maximum DC collector current is 500 mA.
