BCV26, BCV46 are Si-Epitaxial PlanarTransistors PNP surface mount transistors

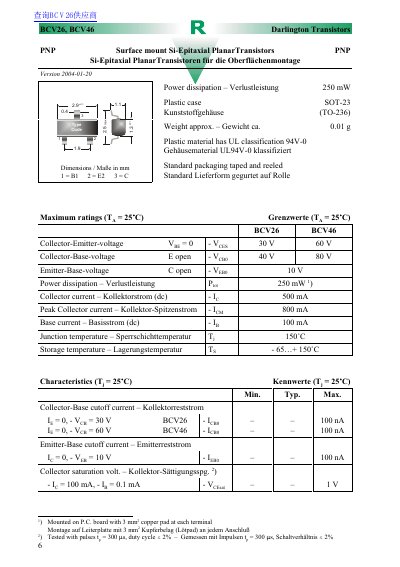

This document provides specifications for BCV26 and BCV46 PNP surface-mount Darlington transistors. It includes maximum ratings such as collector-emitter voltage and power dissipation, along with electrical characteristics like current gain and thermal resistance. This manual is written in German.
| Power dissipation | 250 mW |
|---|---|
| Collector-Emitter voltage | 30 V (BCV26), 60 V (BCV46) |
| Collector current (dc) | 500 mA |
| Peak Collector current | 800 mA |
| Thermal resistance junction to ambient | 420 K/W |
| Gain-Bandwidth Product | 220 MHz |
BCV26 is marked as FD and BCV46 is marked as FE.
The document indicates that pinning information is available but does not list the specific pinout details in the text.
