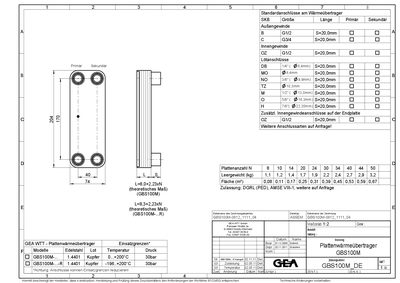

This is a drawing of GEA WTT GBS100M-0812_1111_04, which details the product's dimensions, weight, material, etc.
This document provides technical specifications for the GEA GBS 100M plate heat exchanger. It details standard connection types and sizes for primary and secondary sides, as well as additional internal thread connections available upon request.
The sheet specifies the materials used (1.4401 stainless steel and copper) and the operational limits for temperature and pressure. It also includes a table correlating the number of plates with the unit's weight and surface area. This manual is written in German.
| Material | 1.4401 / Copper |
|---|
