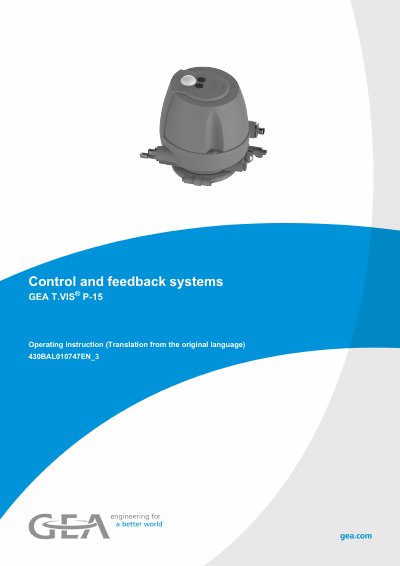

GEA T.VIS P-15 Control and Feedback System Operating Instructions

About this manual

This document serves as the operating instruction manual for the GEA T.VIS P-15 control and feedback system. It is an English translation of the original instructions provided by GEA Tuchenhagen GmbH and covers procedures for transport, installation, commissioning, operation, and maintenance.

The manual details the intended use of the programmable positioner for setting single-seat valves to specific positions within a given stroke. It provides comprehensive guidance on safety requirements, electrical and pneumatic connections, mounting instructions for various valve types, startup procedures, alarm handling, and spare parts lists.

What's inside

• General Information
• Safety
• Description
• Transport and storage
• Assembly and installation
• Start-up
• Operation and control
• Cleaning
• Maintenance
• Alarms

Specifications

Frequently asked questions

Can the T.VIS P-15 be used in areas requiring ATEX approval?

No, it may not be used in such areas.

What are the requirements for personnel working on this component?

Only qualified personnel authorized by the operating company may work on it.

Are technical modifications allowed?

No, no technical modifications should ever be made to this component.
