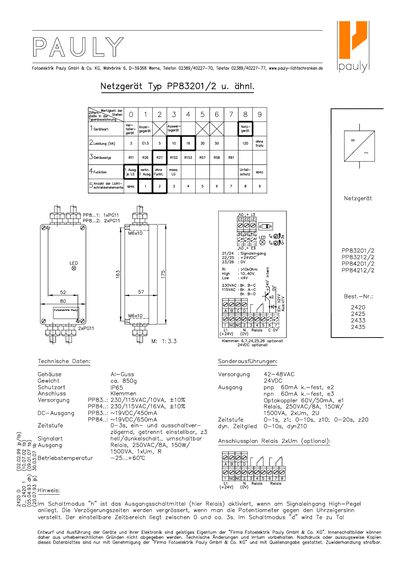

Pauly PP83201/2 Network Device Technical Data Sheet

Brand: Pauly
Document type: Datasheet
Language: German
Pages: 1
File format: PDF
File size: 65 KB
Published: 10 July, 2012
Updated: 29 September, 2023
Models: PP83201, PP2
MD5 checksum: DC54D3D8D039A12CF924FC60460FEB03
PDF: Pauly PP83201/2 Network Device Technical Data Sheet PDF

About this manual

This document provides technical specifications for the Pauly Netzgerät (network device) model PP83201/2. It covers electrical characteristics including voltage ranges, current ratings, and protection features.

The datasheet details two main variants: the PP83 series with optocoupler outputs and the PP84 series with relay outputs. Key specifications include a supply voltage of 230VAC or 115VAC for both types, with specific power consumption ratings of 10VA and 16VA respectively. This manual is written in German.

What's inside

Netzgerät Typ
Technische Daten
Versorgung
Ausgang
Schutzart
Betriebstemperatur

Specifications

Supply Voltage (PP83)	230/115VAC
Supply Voltage (PP84)	230/115VAC
Output Type (PP83)	Optokoppler
Output Type (PP84)	Relais
Protection Class	IP65
Operating Temperature	-25...+60C

Frequently asked questions

What is the maximum operating temperature range for the PP83201/2 device?

The device operates within a temperature range of -25 to +60 degrees Celsius.

What is the maximum current rating for the DC output of the PP83201/2?

The DC output is rated for a maximum current of 450mA.

What is the maximum current rating for the relay output of the PP83201/2?

The relay output is rated for a maximum current of 8A.

Download PDF (65 KB)
